Description

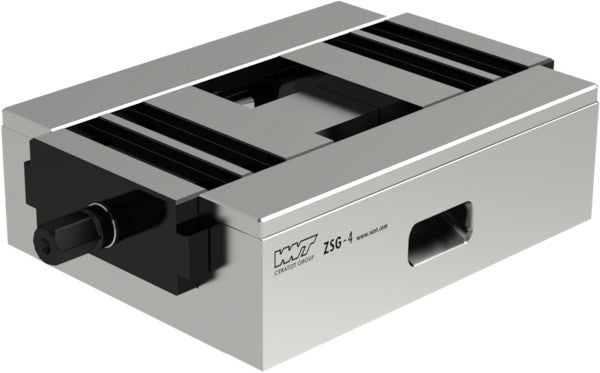

ZSG-4.125.OB W.S.L.300 CENTRIC VICE WITHOUT SYSTEM JAWS sealed centric vice suitable for PNG, MNG and Lang zero point clamping systems without system jaws ball bearing mounted spindle ±0.01 mm repeatability
Mat No: 8087812600, Article No: 8087812600
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT ZSG-4.125.OB W.S.L.300 CENTRIC VICE WITHOUT SYSTEM JAWS 8087812600 (0650397) | |
| EDP # | 0650397 | |
| Weight | 381.0 oz | 10800.0 g |

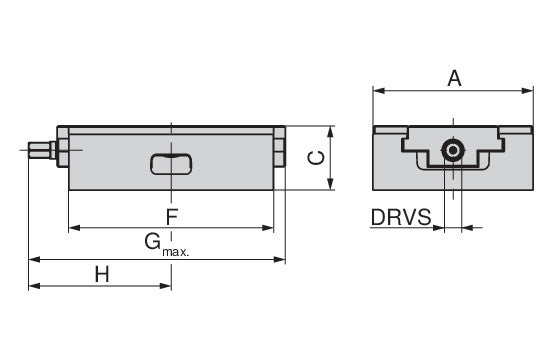

| A | 4.9213 inch | 125 mm |
| C | 1.9685 inch | 50 mm |
| F | 11.8110 inch | 300 mm |
| H | 7.1260 inch | 181 mm |
| Gmax. | 13.7008 inch | 348 mm |
| Maximum clamping force MXC | 35 kN | |
| Drive size DRVS | 0.4724 inch | 12 mm |
| Designation | ZSG-4.125.OB W.S.L.300 | |
Application & Properties:
