Description
ZSG-4.ZS.WB.G.125.235 CENTRIC VICE WITH GRIP JAWS sealed centric vice with 2 reversible grip jaws ball bearing mounted spindle ±0.01 mm repeatability
Mat No: 8087812800, Article No: 8087812800
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

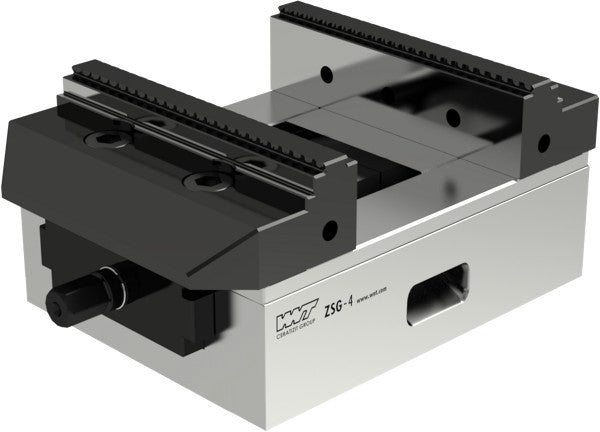

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT ZSG-4.ZS.WB.G.125.235 CENTRIC VICE WITH GRIP JAWS 8087812800 (0650398) | |
| EDP # | 0650398 | |
| Weight | 0.5 oz | 12.8 g |
| A | 4.9213 inch | 125 mm |
| B | 0 - 155 mm | |
| B1 | 8 - 162 mm | |
| B2 | 77 - 218 mm | |
| B3 | 84 - 225 mm | |
| C ±0.01 | 1.9685 inch | 50 mm |
| D | 1.2992 inch | 33 mm |
| E | 3.2677 inch | 83 mm |
| F | 9.2520 inch | 235 mm |
| H | 5.6496 inch | 143.5 mm |
| Gmax. | 10.7087 inch | 272 mm |
| Maximum clamping force MXC | 35 kN | |
| Drive size DRVS | 0.4724 inch | 12 mm |
| Designation | ZSG-4.ZS.WB.G.125.235 | |
Application & Properties:
