Description

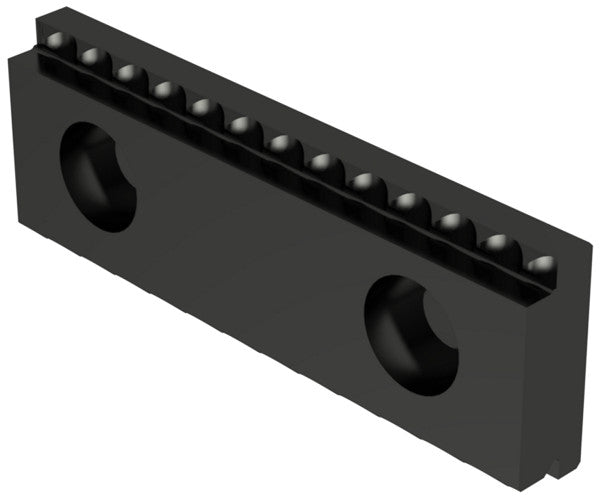

ZSGmini.65.22.8 REVERSIBLE GRIP JAW For vertical and horizontal application Price per piece
Mat No: 8089534000, Article No: 80895340
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

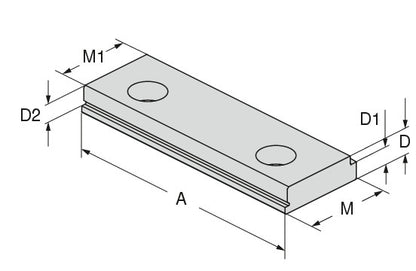

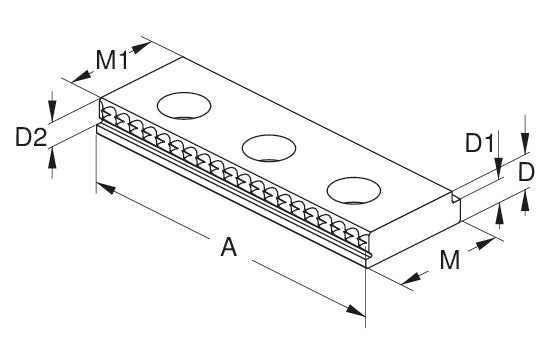

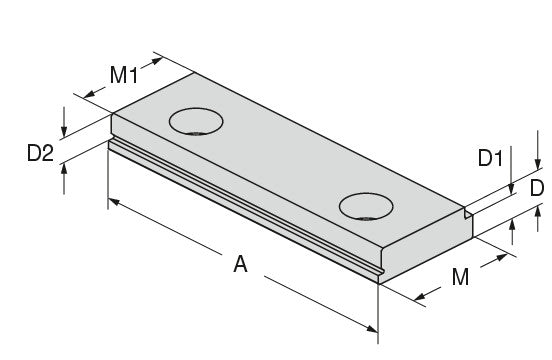

Properties | ||
---|---|---|
Name | CERATIZIT ZSGMINI.65.22.8 REVERSIBLE GRIP JAW 8089534000 (0650425) | |
EDP # | 0650425 | |
Weight | 2.5 oz | 71.3 g |
A | 2.5591 inch | 65 mm |
D | 0.3150 inch | 8 mm |
D1 D1 | 0.2165 inch | 5.5 mm |
D2 D2 | 0.1969 inch | 5 mm |
M | 0.8661 inch | 22 mm |
M1 M1 | 0.7480 inch | 19 mm |
Application & Properties:
