ZSGmini.100.35 REVERSABLE GRIP JAW 35MM For vertical and horizontal application 3 point clamping Price per piece
Mat No: 8089534500, Article No: 80895345
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT ZSGMINI.100.35 REVERSABLE GRIP JAW 35MM 8089534500 (0650435) | |
| EDP # | 0650435 | |
| Weight | 3.3 oz | 94.7 g |

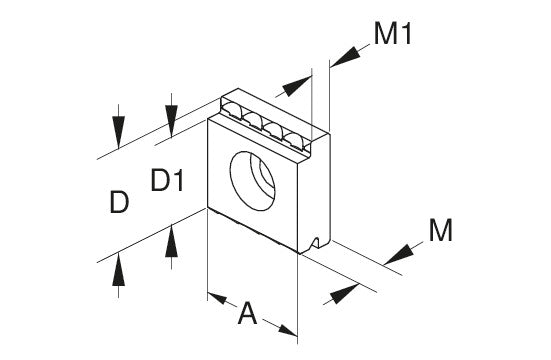

| A | 1.3780 inch | 35 mm |
| for width | 3.9370 inch | 100 mm |
| D | 1.3780 inch | 35 mm |
| D1 D1 | 1.2598 inch | 32 mm |
| M | 0.4134 inch | 10.5 mm |
| M1 M1 | 0.3150 inch | 8 mm |
Application & Properties:
