YELSTRIPR-8.000N0.12-30.0CTZ32.0-I26_5278408600 (0650469)


Price:
Sale price$84.75
Stock:
Not in stock - Available to order

Description

ICR.H-SA.8,0.40.Z4.HB.EL TI1500 HPC SOLID CARBIDE END MILLING CUTTER

Mat No: 5278408600, Article No: 52784086

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

HPC Cutter Monster Mill.

N form tools are simple corner-chamfered end mills. These are very similar to R but with a chamfer instead of a radius. Note that square/flat end mills are classified under the R form only.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

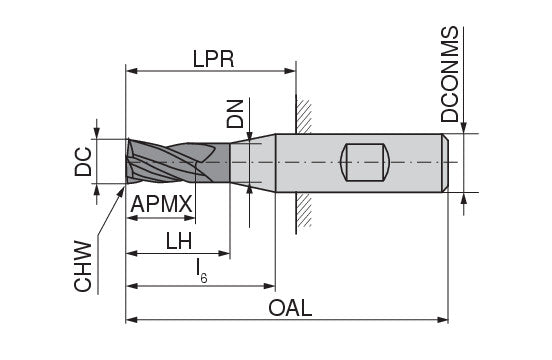

Properties
Name YELSTRIPR-8.000N0.12-30.0CTZ32.0-I26_5278408600 (0650469)
EDP # 0650469
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black)
Weight 1.7 oz 47 g
Cutting diameter DC/d1 e8 0.315 inch 8 mm
Depth of cut maximum APMX/l2 0.4724 inch 12 mm
Neck Diameter DN/d3 0.3031 inch 7.7 mm
Head length LH/l3 1.1811 inch 30 mm
Protruding length LPR/l5 1.2598 inch 32 mm
Overall length OAL/l1 2.6772 inch 68 mm
Mounting spigot diameter DCONMS/d2 h6 0.315 inch 8 mm
Corner chamfer width CHW/K 0.0047 inch 0.12 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
