YELSTRIPR-16.00N0.20-55.0CTZ60.0-R42_5278416600 (0650472)


Price:
Sale price$227.16
Stock:
Re-stocking soon

Description

ICR.H-SA.16,0.40°.Z5.HB.EL TI1500 HPC SOLID CARBIDE END MILLING CUTTER

Mat No: 5278401700, Article No: 52784017

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

HPC Cutter 'Monster Mill'.

'N' form tools are simple corner-chamfered end mills. These are very similar to 'R' but with a chamfer instead of a radius. Note that square/flat end mills are classified under the 'R' form only.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

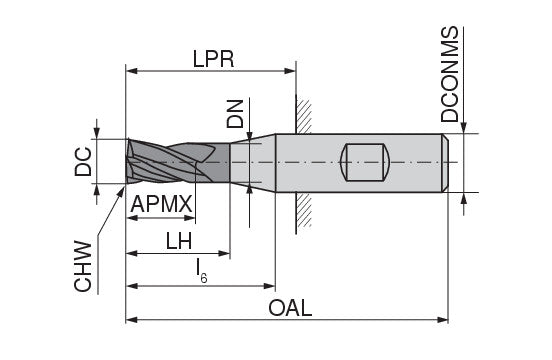

Properties
Name YELSTRIPR-16.00N0.20-55.0CTZ60.0-R42_5278416600 (0650472)
EDP # 0650472
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black)
Weight 10.1 oz 286 g
Cutting diameter DC/d1 e8 0.6299 inch 16 mm
Depth of cut maximum APMX/l2 0.9449 inch 24 mm
Neck Diameter DN/d3 0.6102 inch 15.5 mm
Head length LH/l3 2.1654 inch 55 mm
Protruding length LPR/l5 2.3622 inch 60 mm
Overall length OAL/l1 4.252 inch 108 mm
Mounting spigot diameter DCONMS/d2 h6 0.6299 inch 16 mm
Corner chamfer width CHW/K 0.0079 inch 0.2 mm
Peripheral effective cutting edge count ZEFP/Z 5

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
