Description
ICR.H-SA.20,0.40°.Z4.HB.L TI1500 HPC SOLID CARBIDE END MILLING CUTTER
Mat No: 5278401700, Article No: 52784017
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
HPC Cutter 'Monster Mill'.
'N' form tools are simple corner-chamfered end mills. These are very similar to 'R' but with a chamfer instead of a radius. Note that square/flat end mills are classified under the 'R' form only.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | YELSTRIPR-20.00N0.30-50.0CTZ54.0-U40_5278420300 (0650473) | |
| EDP # | 0650473 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) | |
| Weight | 14.2 oz | 401 g |

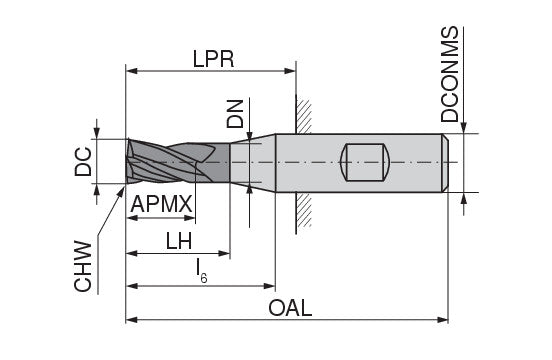

| Cutting diameter DC/d1 e8 | 0.7874 inch | 20 mm |
| Depth of cut maximum APMX/l2 | 1.4961 inch | 38 mm |
| Neck Diameter DN/d3 | 0.7677 inch | 19.5 mm |
| Head length LH/l3 | 1.9685 inch | 50 mm |
| Protruding length LPR/l5 | 2.126 inch | 54 mm |
| Overall length OAL/l1 | 4.0945 inch | 104 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.7874 inch | 20 mm |
| Corner chamfer width CHW/K | 0.0118 inch | 0.3 mm |
| Peripheral effective cutting edge count ZEFP/Z | 4 | |
Application & Properties:
Suitable Materials:
