CERATIZIT ICR.H-SA.18,0.40°.Z4.HB.L.IK TI1500 HPC SOLID CARBIDE END MILLING CUTTER 5278618300 (0650474)


Price:
Sale price$362.84
Stock:
Not in stock - Available to order

Description

ICR.H-SA.18,0.40°.Z4.HB.L.IK TI1500 HPC SOLID CARBIDE END MILLING CUTTER with axial through coolant

Mat No: 5278618300, Article No: 52786183

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

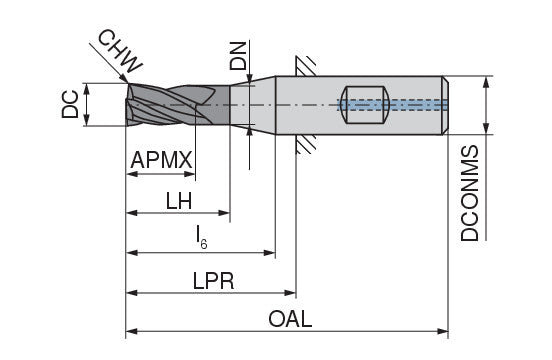

Properties
Name CERATIZIT ICR.H-SA.18,0.40°.Z4.HB.L.IK TI1500 HPC SOLID CARBIDE END MILLING CUTTER 5278618300 (0650474)
EDP # 0650474
Workpiece Material(s) All Materials (White)
Weight 10.1 oz 285.4 g
Cutting diameter DC/d1 e8 0.7087 inch 18 mm
Depth of cut maximum APMX/l2 1.2598 inch 32 mm
Neck Diameter DN/d3 0.689 inch 17.5 mm
Head length LH/l3 1.5748 inch 40 mm
Protruding length LPR/l5 1.7323 inch 44 mm
Overall length OAL/l1 3.622 inch 92 mm
Mounting spigot diameter DCONMS/d2 h6 0.7087 inch 18 mm
Corner chamfer width CHW/K 0.0079 inch 0.2 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
,
