CERATIZIT ICR.H-SA.14,0.40°.Z4.HB.L.IK TI1500 HPC SOLID CARBIDE END MILLING CUTTER 5278614400 (0650478)


Price:
Sale price$252.90
Stock:
Not in stock - Available to order

Description

ICR.H-SA.14,0.40°.Z4.HB.L.IK TI1500 HPC SOLID CARBIDE END MILLING CUTTER with axial through coolant

Mat No: 5278614400, Article No: 52786144

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT ICR.H-SA.14,0.40°.Z4.HB.L.IK TI1500 HPC SOLID CARBIDE END MILLING CUTTER 5278614400 (0650478)
EDP # 0650478
Workpiece Material(s) All Materials (White)
Weight 5.7 oz 162.5 g

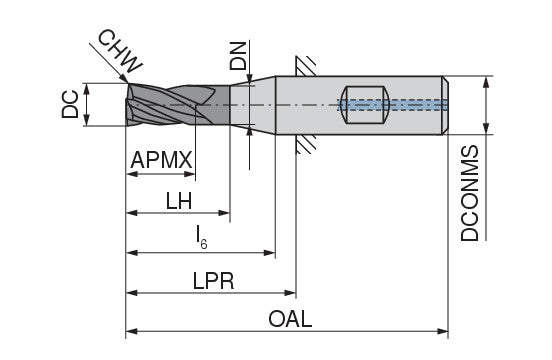

Cutting diameter DC/d1 e8 0.5512 inch 14 mm
Depth of cut maximum APMX/l2 1.0236 inch 26 mm
Neck Diameter DN/d3 0.5315 inch 13.5 mm
Head length LH/l3 1.378 inch 35 mm
Protruding length LPR/l5 1.4961 inch 38 mm
Overall length OAL/l1 3.2677 inch 83 mm
Mounting spigot diameter DCONMS/d2 h6 0.5512 inch 14 mm
Corner chamfer width CHW/K 0.0079 inch 0.2 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
,
