Description
ICR.H-SA.10,0.40.Z4.HB.K TI1500 HPC SOLID CARBIDE END MILLING CUTTER
Mat No: 5278410200, Article No: 52784102
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
HPC Cutter Monster Mill.
N form tools are simple corner-chamfered end mills. These are very similar to R but with a chamfer instead of a radius. Note that square/flat end mills are classified under the R form only.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | YELSTRIPR-10.00N0.20-30.0CTZ32.0-K28_5278410200 (0650480) | |
| EDP # | 0650480 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) | |
| Weight | 2.7 oz | 76 g |

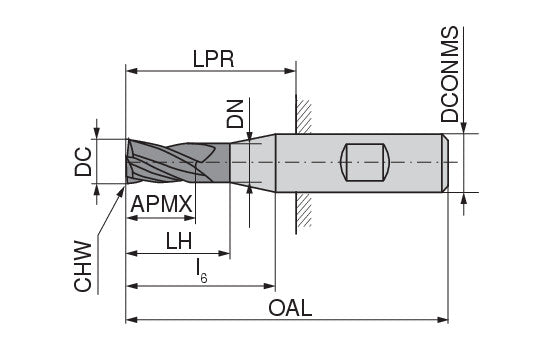

| Cutting diameter DC/d1 e8 | 0.3937 inch | 10 mm |
| Depth of cut maximum APMX/l2 | 0.5906 inch | 15 mm |
| Neck Diameter DN/d3 | 0.374 inch | 9.5 mm |
| Head length LH/l3 | 1.1811 inch | 30 mm |
| Protruding length LPR/l5 | 1.2598 inch | 32 mm |
| Overall length OAL/l1 | 2.8346 inch | 72 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.3937 inch | 10 mm |
| Corner chamfer width CHW/K | 0.0079 inch | 0.2 mm |
| Peripheral effective cutting edge count ZEFP/Z | 4 | |
Application & Properties:
Suitable Materials:
