YELLAPPER-3.000N0.07-14.0CTZ21.0-F22_5278603400 (0650484)


Price:
Sale price$76.85
Stock:
Not in stock - Available to order

Description

ICR.H-SA.3,0.40.Z3.HB.L.IK TI1500 HPC SOLID CARBIDE END MILLING CUTTER with axial through coolant

Mat No: 5278603400, Article No: 52786034

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

HPC Cutter Monster Mill.

N form tools are simple corner-chamfered end mills. These are very similar to R but with a chamfer instead of a radius. Note that square/flat end mills are classified under the R form only.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties

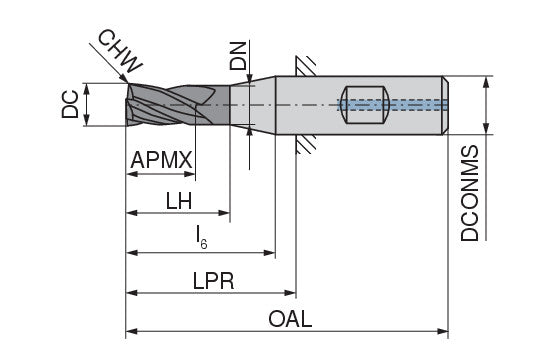

Name YELLAPPER-3.000N0.07-14.0CTZ21.0-F22_5278603400 (0650484)
EDP # 0650484
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black)
Weight 0.7 oz 19 g
Cutting diameter DC/d1 e8 0.1181 inch 3 mm
Depth of cut maximum APMX/l2 0.315 inch 8 mm
Neck Diameter DN/d3 0.1142 inch 2.9 mm
Head length LH/l3 0.5512 inch 14 mm
L6 l6 0.7087 inch 18 mm
Protruding length LPR/l5 0.8268 inch 21 mm
Overall length OAL/l1 2.2441 inch 57 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm
Corner chamfer width CHW/K 0.0028 inch 0.07 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
