Description
ICR.H-SA.16,0.40°.Z4.HB.EL TI1500 HPC SOLID CARBIDE END MILLING CUTTER
Mat No: 5278401700, Article No: 52784017
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
HPC Cutter 'Monster Mill'.
'N' form tools are simple corner-chamfered end mills. These are very similar to 'R' but with a chamfer instead of a radius. Note that square/flat end mills are classified under the 'R' form only.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | YELSTRIPR-16.00N0.20-55.0CTZ60.0-R42_5278416500 (0650487) | |
| EDP # | 0650487 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) | |
| Weight | 9.8 oz | 279 g |

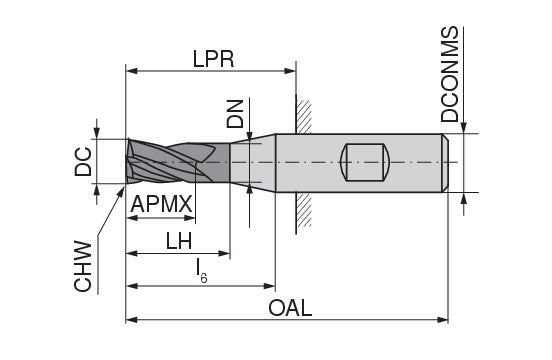

| Cutting diameter DC/d1 e8 | 0.6299 inch | 16 mm |
| Depth of cut maximum APMX/l2 | 0.9449 inch | 24 mm |
| Neck Diameter DN/d3 | 0.6102 inch | 15.5 mm |
| Head length LH/l3 | 2.1654 inch | 55 mm |
| Protruding length LPR/l5 | 2.3622 inch | 60 mm |
| Overall length OAL/l1 | 4.252 inch | 108 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.6299 inch | 16 mm |
| Corner chamfer width CHW/K | 0.0079 inch | 0.2 mm |
| Peripheral effective cutting edge count ZEFP/Z | 4 | |
Application & Properties:
Suitable Materials:
