YELBRAWLR-20.00N0.30-50.0CTZ54.0-U40_5278620300 (0650500)


Price:
Sale price$430.26
Stock:
Not in stock - Available to order

Description

ICR.H-SA.20,0.40.Z4.HB.L.IK TI1500 HPC SOLID CARBIDE END MILLING CUTTER with axial through coolant

Mat No: 5278620300, Article No: 52786203

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

HPC Cutter Monster Mill.

N form tools are simple corner-chamfered end mills. These are very similar to R but with a chamfer instead of a radius. Note that square/flat end mills are classified under the R form only.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name YELBRAWLR-20.00N0.30-50.0CTZ54.0-U40_5278620300 (0650500)
EDP # 0650500
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black)
Weight 13.9 oz 394 g

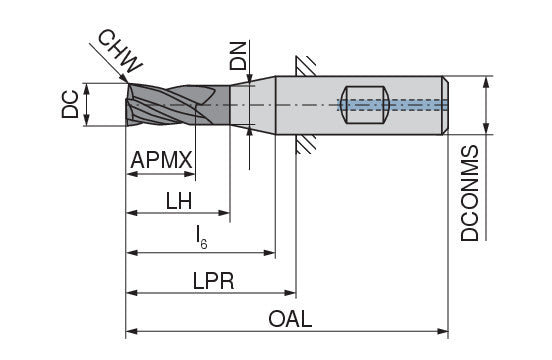

Cutting diameter DC/d1 e8 0.7874 inch 20 mm
Depth of cut maximum APMX/l2 1.4961 inch 38 mm
Neck Diameter DN/d3 0.7677 inch 19.5 mm
Head length LH/l3 1.9685 inch 50 mm
Protruding length LPR/l5 2.126 inch 54 mm
Overall length OAL/l1 4.0945 inch 104 mm
Mounting spigot diameter DCONMS/d2 h6 0.7874 inch 20 mm
Corner chamfer width CHW/K 0.0118 inch 0.3 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
