YELLAPPER-10.00N0.20-30.0CTZ32.0-K28_5278610400 (0650506)


Price:
Sale price$119.83
Stock:
Not in stock - Available to order

Description

ICR.H-SA.10,0.40.Z4.HB.L.IK TI1500 HPC SOLID CARBIDE END MILLING CUTTER with axial through coolant

Mat No: 5278610400, Article No: 52786104

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

HPC Cutter Monster Mill.

N form tools are simple corner-chamfered end mills. These are very similar to R but with a chamfer instead of a radius. Note that square/flat end mills are classified under the R form only.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name YELLAPPER-10.00N0.20-30.0CTZ32.0-K28_5278610400 (0650506)
EDP # 0650506
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black)
Weight 2.5 oz 71 g

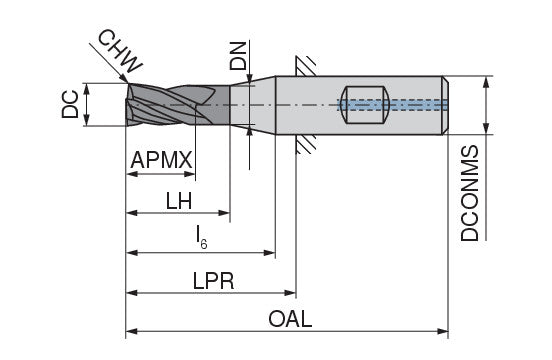

Cutting diameter DC/d1 e8 0.3937 inch 10 mm
Depth of cut maximum APMX/l2 0.8661 inch 22 mm
Neck Diameter DN/d3 0.374 inch 9.5 mm
Head length LH/l3 1.1811 inch 30 mm
Protruding length LPR/l5 1.2598 inch 32 mm
Overall length OAL/l1 2.8346 inch 72 mm
Mounting spigot diameter DCONMS/d2 h6 0.3937 inch 10 mm
Corner chamfer width CHW/K 0.0079 inch 0.2 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
