YELSTRIPR-1.500N0.04-6.00CTZ21.0-F22_5278401700 (0650523)


Price:
Sale price$57.93
Stock:
Re-stocking soon

Description

ICR.H-SA.1,5.40°.Z3.HB.K TI1500 HPC SOLID CARBIDE END MILLING CUTTER

Mat No: 5278401700, Article No: 52784017

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

HPC Cutter 'Monster Mill'.

'N' form tools are simple corner-chamfered end mills. These are very similar to 'R' but with a chamfer instead of a radius. Note that square/flat end mills are classified under the 'R' form only.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name YELSTRIPR-1.500N0.04-6.00CTZ21.0-F22_5278401700 (0650523)
EDP # 0650523
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black)
Weight 0.9 oz 24 g

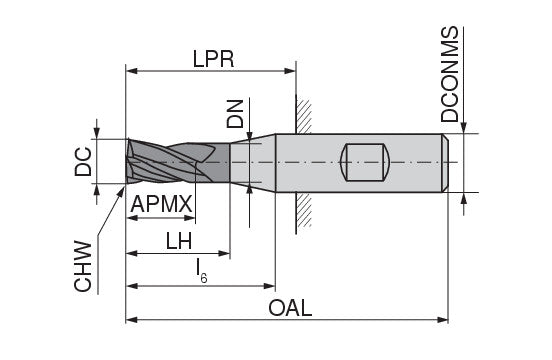

Cutting diameter DC/d1 e8 0.0591 inch 1.5 mm
Depth of cut maximum APMX/l2 0.0906 inch 2.3 mm
Neck Diameter DN/d3 0.0551 inch 1.4 mm
Head length LH/l3 0.2362 inch 6 mm
L6 l6 0.5511811023622047 inch 14 mm
Protruding length LPR/l5 0.8268 inch 21 mm
Overall length OAL/l1 2.2441 inch 57 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm
Corner chamfer width CHW/K 0.0016 inch 0.04 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
