Description
Ceratizit Article Number: 5902962520
Ceratizit Material Number: 12180056
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

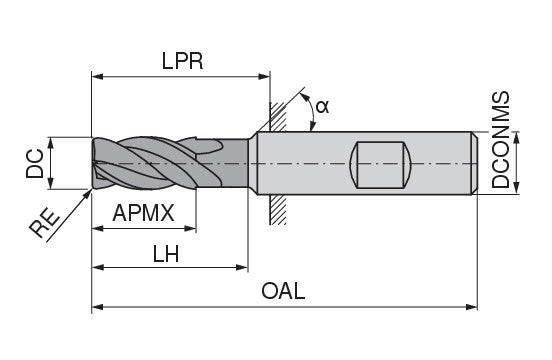

| Properties | ||
|---|---|---|
| Name | Ceratizit 3DX119-06250.12500.R03.R00300.HA.X104 CoreLine End Mills With Corner Radius AL 5902962520 | |
| EDP # | 0650533 | |
| Weight (1 pc.) | 8.0 oz | 220 g |
| Cutting diameter / DC +0.000/-0.002 mm | 0.6250" | 15.880 mm |
| Corner radius / RE ±0.001 | 0.0300" | 0.760 mm |
| Depth of cut maximum / APMX | 1.2500" | 31.750 mm |
| Protruding length / LPR | 1.6125" | 40.960 mm |
| Overall length / OAL | 3.5000" | 88.900 mm |
| Mounting spigot diameter / DCONMS -0.0001 / -0.0004 | 0.6250" | 15.880 mm |
| Peripheral effective cutting edge count / ZEFP | 3.0000" | 76.200 mm |
| Coating name / Grade (Ceratizit) / COATN | AlTiN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
