GRNSTRIPR-14.29R0.76-31.8CTZ31.8-P35_12180054 (0650543)


Price:
Sale price$100.81
Stock:
Re-stocking soon

Description

AL.0563.3.R0030.HA.1250 ALTIN-U CARBIDE ROUGH-FINISH CUTTER CORNER RAD

Mat No: 12180017, Article No: 5903025030

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance cutting for non-ferrous materials

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip and rounded corners. This form is perfect for prismatic features which require rounded fillets at the base of wall features, or, optimizing complex surfacing.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRNSTRIPR-14.29R0.76-31.8CTZ31.8-P35_12180054 (0650543)
EDP # 0650543
Workpiece Material(s) Aluminum (Green)
Weight 6.3 oz 180 g

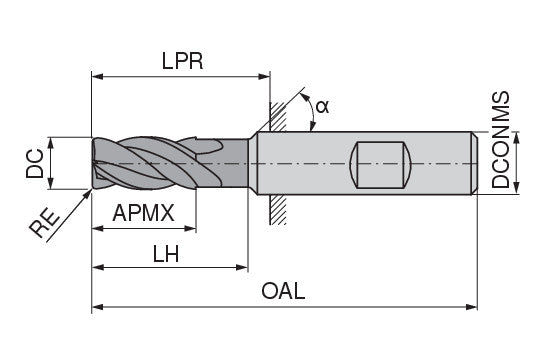

Cutting diameter DC/d1 +0.000/-0.002 0.5625 inch 14.2875 mm
Corner radius RE/r ±0.001 0.03 inch 0.762 mm
Depth of cut maximum APMX/l2 1.25 inch 31.75 mm
Overall length OAL/l1 3.5 inch 88.9 mm
Mounting spigot diameter DCONMS/d2 -0.0001 / -0.0004 0.5625 inch 14.2875 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property image
