CERATIZIT AL.0375.3.R0020.HA.1500 ALTIN-U CARBIDE ROUGH-FINISH CUTTER CORNER RAD 12180040 (0650571)


Price:
Sale price$91.84
Stock:
Not in stock - Available to order

Description

AL.0375.3.R0020.HA.1500 ALTIN-U CARBIDE ROUGH-FINISH CUTTER CORNER RAD

Mat No: 12180040, Article No: 5902937540

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT AL.0375.3.R0020.HA.1500 ALTIN-U CARBIDE ROUGH-FINISH CUTTER CORNER RAD 12180040 (0650571)
EDP # 0650571
Workpiece Material(s) All Materials (White)
Weight 2.8 oz 80.0 g

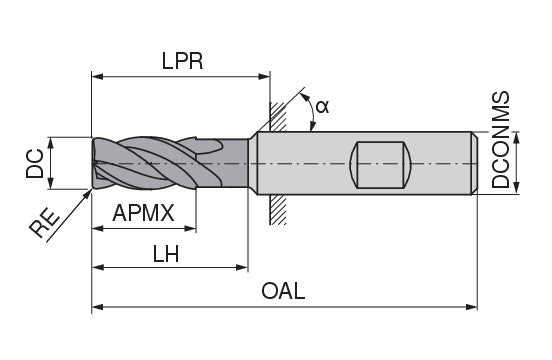

Cutting diameter DC/d1 +0.000/-0.002 0.375 inch 9.525 mm
Corner radius RE/r ±0.001 0.02 inch 0.508 mm
Depth of cut maximum APMX/l2 1.5 inch 38.1 mm
Overall length OAL/l1 3.5 inch 88.9 mm
Mounting spigot diameter DCONMS/d2 -0.0001 / -0.0004 0.375 inch 9.525 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Suitable Materials:

Property image
,
