WHTTHREDR-6.000E1.41-18.0CTZ18.0-F23_5480651600 (0650603)


Price:
Sale price$160.82
Stock:
Not in stock - Available to order

Description

SGF.BSW5/16-18.HB.6.18,0.IR/IL.IK TI500 SOLID CARBIDE THREAD MILLING CUTTER Profile corrected

Mat No: 5480651600, Article No: 54806516

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

General purpose thread milling cutter.

E form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-6.000E1.41-18.0CTZ18.0-F23_5480651600 (0650603)
EDP # 0650603
Workpiece Material(s) All Materials (White)
Weight 0.8 oz 22 g

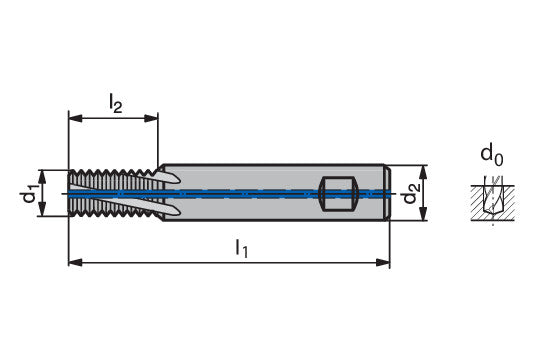

Cutting diameter DC/d1 0.2362 inch 6 mm
Thread BSW 5/16 - 18
Thread pitch TP/p 0.0556 inch 1.411 mm
Threads per inch TPI/p 18
Depth of cut maximum APMX/l2 0.7087 inch 18 mm
Overall length OAL/l1 2.3622 inch 60 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm
Peripheral effective cutting edge count ZEFP/Z 3
Premachined hole diameter PHD/d0 0.2559 inch 6.5 mm

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
