Description
SGF.BSF3/8-20.HB.6.18,0.IR/IL.IK TI500 SOLID CARBIDE THREAD MILLING CUTTER Profile corrected
Mat No: 5480803800, Article No: 54808038
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
General purpose thread milling cutter.
E form tools are multi-point thread mills with a fixed pitch.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | WHTTHREDR-6.000E1.27-18.0CTZ18.0-F23_5480803800 (0650604) | |
| EDP # | 0650604 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.8 oz | 23 g |

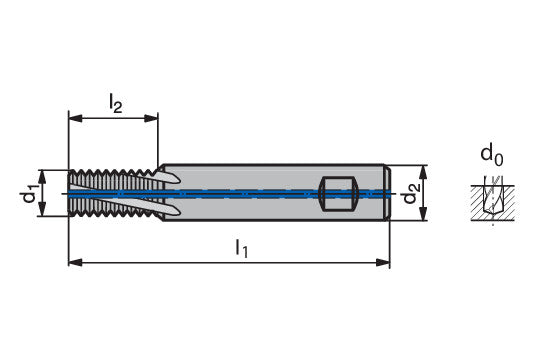

| Cutting diameter DC/d1 | 0.2362 inch | 6 mm |
| Thread | BSF 3/8 - 20 | |
| Thread pitch TP/p | 0.05 inch | 1.27 mm |
| Threads per inch TPI/p | 20 | |
| Depth of cut maximum APMX/l2 | 0.7087 inch | 18 mm |
| Overall length OAL/l1 | 2.3622 inch | 60 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.2362 inch | 6 mm |
| Peripheral effective cutting edge count ZEFP/Z | 3 | |
| Premachined hole diameter PHD/d0 | 0.3268 inch | 8.3 mm |
Application & Properties:
Suitable Materials:
