CERATIZIT SGF.UNF1/4-28.HB.6.13,0.IR/IL TI500 SOLID CARBIDE THREAD MILLING CUTTER 5481201400 (0650607)


Price:
Sale price$174.44
Stock:
Not in stock - Available to order

Description

SGF.UNF1/4-28.HB.6.13,0.IR/IL TI500 SOLID CARBIDE THREAD MILLING CUTTER Profile corrected

Mat No: 5481201400, Article No: 54812014

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT SGF.UNF1/4-28.HB.6.13,0.IR/IL TI500 SOLID CARBIDE THREAD MILLING CUTTER 5481201400 (0650607)
EDP # 0650607
Workpiece Material(s) All Materials (White)
Weight 0.8 oz 23.0 g

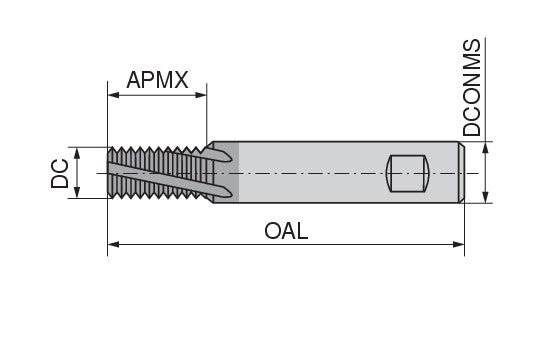

Cutting diameter DC/d1 0.189 inch 4.8 mm
Thread UNF 1/4-28
Thread pitch TP/p 0.0357 inch 0.907 mm
Threads per inch TPI/p 28
Depth of cut maximum APMX/l2 0.5118 inch 13 mm
Overall length OAL/l1 2.1654 inch 55 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm
Peripheral effective cutting edge count ZEFP/Z 3
Premachined hole diameter PHD/d0 0.2165 inch 5.5 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
,
