Description
SGF.M20X1,5.HB.16.42,0.IR/IL.IK TI500 SOLID CARBIDE THREAD MILLING CUTTER Profile corrected Hard machining to DC = 4 mm possible
Mat No: 5480220000, Article No: 54802200
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
General purpose thread milling cutter.
E form tools are multi-point thread mills with a fixed pitch.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | WHTTHREDR-16.00E1.50-42.0CTZ42.0-R35_5480220000 (0650618) | |
| EDP # | 0650618 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 7.0 oz | 198 g |

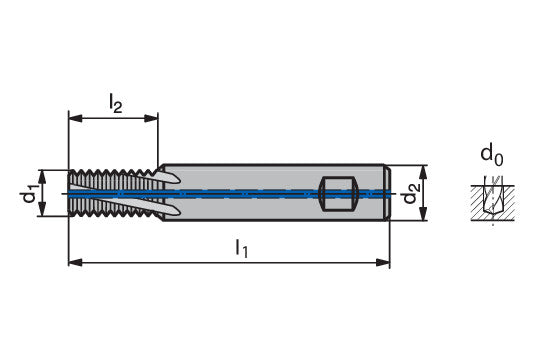

| Cutting diameter DC/d1 | 0.6299 inch | 16 mm |
| Thread | M20 | |
| Thread pitch TP/p | 0.0591 inch | 1.5 mm |
| Depth of cut maximum APMX/l2 | 1.6535 inch | 42 mm |
| Overall length OAL/l1 | 3.5433 inch | 90 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.6299 inch | 16 mm |
| Peripheral effective cutting edge count ZEFP/Z | 4 | |
| Premachined hole diameter PHD/d0 | 0.7283 inch | 18.5 mm |
Application & Properties:
Suitable Materials:
