SGF.M5X0,5.HA.6.11,0.IR/IL TI500 SOLID CARBIDE THREAD MILLING CUTTER Profile corrected Hard machining to Ø DC = 4 mm possible
Mat No: 5480205000, Article No: 54802050
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
|Name||CERATIZIT SGF.M5X0,5.HA.6.11,0.IR/IL TI500 SOLID CARBIDE THREAD MILLING CUTTER 5480205000 (0650621)|
|Workpiece Material(s)||All Materials (White)|
|Weight||0.8 oz||22.0 g|

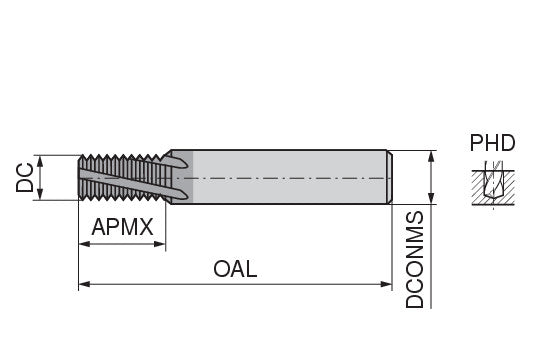

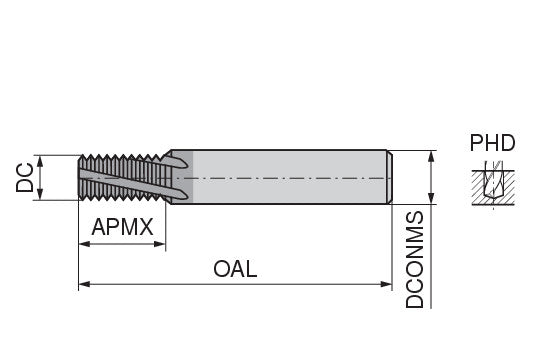

|Cutting diameter DC/d1||0.1575 inch||4 mm|
|Thread pitch TP/p||0.0197 inch||0.5 mm|
|Depth of cut maximum APMX/l2||0.4331 inch||11 mm|
|Overall length OAL/l1||2.1654 inch||55 mm|
|Mounting spigot diameter DCONMS/d2 h6||0.2362 inch||6 mm|
|Peripheral effective cutting edge count ZEFP/Z||3|
|Premachined hole diameter PHD/d0||0.1772 inch||4.5 mm|
Application & Properties:
