SGF.M2,0.HB.16.25,0.IR/IL.IK TI500 SOLID CARBIDE THREAD MILLING CUTTER
Mat No: 5483216200, Article No: 54832162
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

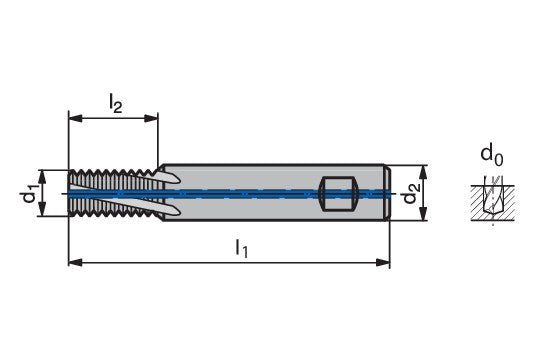

|Name||CERATIZIT SGF.M2,0.HB.16.25,0.IR/IL.IK TI500 SOLID CARBIDE THREAD MILLING CUTTER 5483216200 (0650625)|
|Workpiece Material(s)||All Materials (White)|
|Weight||7.8 oz||222.0 g|
|Cutting diameter DC/d1||0.6299 inch||16 mm|
|Thread pitch TP/p||0.0787 inch||2 mm|
|Depth of cut maximum APMX/l2||0.9843 inch||25 mm|
|Overall length OAL/l1||3.5433 inch||90 mm|
|Mounting spigot diameter DCONMS/d2 h6||0.6299 inch||16 mm|
|Peripheral effective cutting edge count ZEFP/Z||5|
|Premachined hole diameter PHD/d0||0.8661 inch||22 mm|
Application & Properties:
