WHTTHREDR-7.950E1.81-21.0CTZ21.1-I27_5481071600 (0650632)


Price:
Sale price$199.56
Stock:
Not in stock - Available to order

Description

SGF.UNC7/16-14.HB.8.21,0.IR/IL.IK TI500 SOLID CARBIDE THREAD MILLING CUTTER Profile corrected

Mat No: 5481071600, Article No: 54810716

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

General purpose thread milling cutter.

E form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-7.950E1.81-21.0CTZ21.1-I27_5481071600 (0650632)
EDP # 0650632
Workpiece Material(s) All Materials (White)
Weight 0.5 oz 13 g

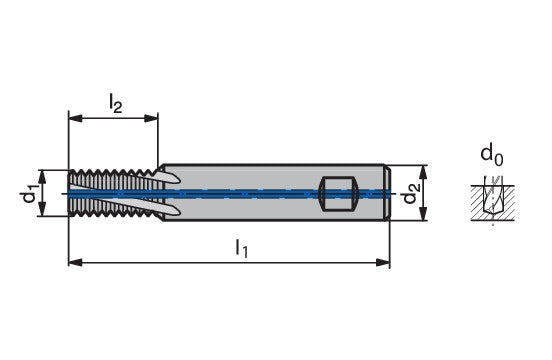

Cutting diameter DC/d1 0.313 inch 7.95 mm
Thread UNC 7/16-14
Thread pitch TP/p 0.0714 inch 1.814 mm
Threads per inch TPI/p 14
Depth of cut maximum APMX/l2 0.8268 inch 21 mm
Overall length OAL/l1 2.7559 inch 70 mm
Mounting spigot diameter DCONMS/d2 h6 0.315 inch 8 mm
Peripheral effective cutting edge count ZEFP/Z 3
Premachined hole diameter PHD/d0 0.3701 inch 9.4 mm

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
