WHTTHREDR-9.900E1.34-26.0CTZ26.1-K29_5480401400 (0650635)

Sale price$208.74
Not in stock - Available to order


SGF.G1/4-19.HB.10.26,0.IR/IL.IK TI500 SOLID CARBIDE THREAD MILLING CUTTER Profile corrected Hard machining to DC = 4 mm possible

Mat No: 5480401400, Article No: 54804014

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

General purpose thread milling cutter.

E form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Name WHTTHREDR-9.900E1.34-26.0CTZ26.1-K29_5480401400 (0650635)
EDP # 0650635
Workpiece Material(s) All Materials (White)
Weight 2.5 oz 70 g

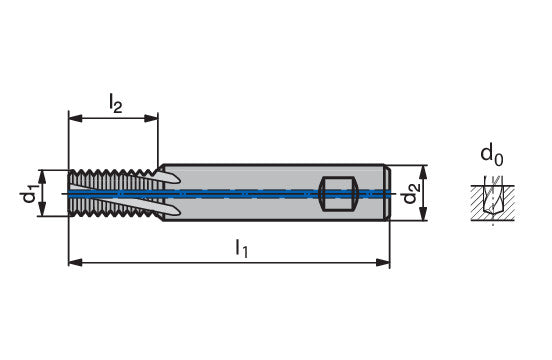

Cutting diameter DC/d1 0.3898 inch 9.9 mm
Thread G 1/4-19
Thread pitch TP/p 0.0526 inch 1.337 mm
Threads per inch TPI/p 19
Depth of cut maximum APMX/l2 1.0236 inch 26 mm
Overall length OAL/l1 2.9528 inch 75 mm
Mounting spigot diameter DCONMS/d2 h6 0.3937 inch 10 mm
Peripheral effective cutting edge count ZEFP/Z 4
Premachined hole diameter PHD/d0 0.4646 inch 11.8 mm

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
