WHTTHREDR-4.800E0.75-13.0CTZ14.2-F21_5480206000 (0650649)


Price:
Sale price$130.91
Stock:
Not in stock - Available to order

Description

SGF.M6X0,75.HA.6.13,0 TI500 SOLID CARBIDE THREAD MILLING CUTTER Profile corrected Hard machining to DC = 4 mm possible

Mat No: 5480206000, Article No: 54802060

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

General purpose thread milling cutter.

E form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-4.800E0.75-13.0CTZ14.2-F21_5480206000 (0650649)
EDP # 0650649
Workpiece Material(s) All Materials (White)
Weight 0.8 oz 21 g

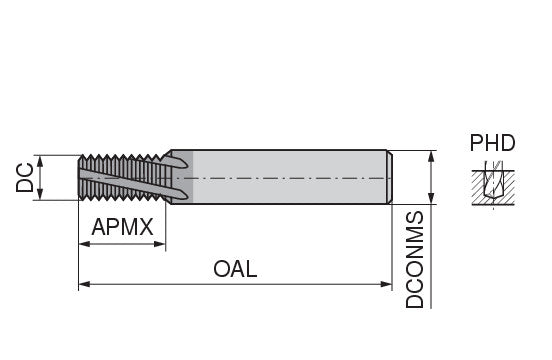

Cutting diameter DC/d1 0.189 inch 4.8 mm
Thread M6
Thread pitch TP/p 0.0295 inch 0.75 mm
Depth of cut maximum APMX/l2 0.5118 inch 13 mm
Overall length OAL/l1 2.1654 inch 55 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm
Peripheral effective cutting edge count ZEFP/Z 3
Premachined hole diameter PHD/d0 0.2067 inch 5.25 mm

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
