Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 50825030
Ceratizit Material Number: 5082503000
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

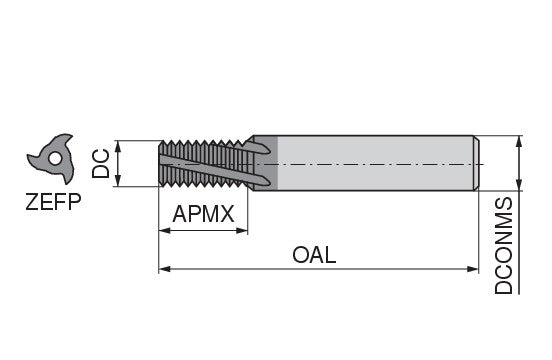

| Properties | ||
|---|---|---|
| Name | Ceratizit SGF.M3.HA.4.6.0.IR/IL TIALN MonoThread - Thread Milling Cutter 50825030 | |
| EDP # | 0650661 | |
| Weight (1 pc.) | 0.4 oz | 11.2 g |
| Thread | M3 | |
| Thread pitch / TP | 0.0197' | 0.500 mm |
| Cutting diameter / DC | 0.0945' | 2.400 mm |
| Depth of cut maximum / APMX | 0.2362' | 6.000 mm |
| Overall length / OAL | 1.6535' | 42.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.1575' | 4.000 mm |
| Peripheral effective cutting edge count / ZEFP | 3 | |
| Premachined hole diameter / PHD | 0.0984' | 2.500 mm |
| Coating name / Grade (Ceratizit) / COATN | TiAlN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
