CERATIZIT SGF.M12X1,5.HA.10.24,0.IR/IL.IK TIALN SOLID CARBIDE THREAD MILLING CUTTER 5082612400 (0650673)


Price:
Sale price$230.43
Stock:
Not in stock - Available to order

Description

SGF.M12X1,5.HA.10.24,0.IR/IL.IK TIALN SOLID CARBIDE THREAD MILLING CUTTER Available on request: M30, M36, M42, M48, M56, M64 Profile corrected

Mat No: 5082612400, Article No: 50826124

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT SGF.M12X1,5.HA.10.24,0.IR/IL.IK TIALN SOLID CARBIDE THREAD MILLING CUTTER 5082612400 (0650673)
EDP # 0650673
Workpiece Material(s) All Materials (White)
Weight 3.0 oz 84.5 g

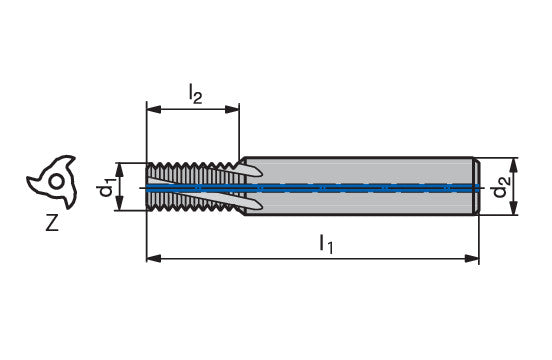

Cutting diameter DC/d1 0.3937 inch 10 mm
Thread M12x1.5
Thread pitch TP/p 0.0591 inch 1.5 mm
Depth of cut maximum APMX/l2 0.9449 inch 24 mm
Overall length OAL/l1 3.1496 inch 80 mm
Mounting spigot diameter DCONMS/d2 h6 0.3937 inch 10 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Suitable Materials:
