Description
SGF.M20.HA.14.40,0.IR/IL.IK TIALN SOLID CARBIDE THREAD MILLING CUTTER Available on request: M30, M36, M42, M48, M56, M64
Mat No: 5082608200, Article No: 50826082
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
General purpose thread milling cutter.
'E' form tools are multi-point thread mills with a fixed pitch.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | WHTTHREDR-14.00E2.50-40.0CTZ40.0-O35_5082520000 (0650679) | |
| EDP # | 0650679 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 5.3 oz | 150 g |

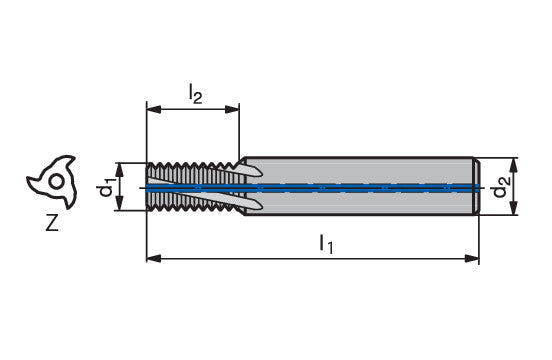

| Cutting diameter DC/d1 | 0.5512 inch | 14 mm |
| Thread | M20 | |
| Thread pitch TP/p | 0.0984 inch | 2.5 mm |
| Depth of cut maximum APMX/l2 | 1.5748 inch | 40 mm |
| Overall length OAL/l1 | 3.5433 inch | 90 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.5512 inch | 14 mm |
| Peripheral effective cutting edge count ZEFP/Z | 4 | |
Application & Properties:
Suitable Materials:
