Description
SGF.M5X0,5.HA.6.10,0.IR/IL.IK TIALN SOLID CARBIDE THREAD MILLING CUTTER Available on request: M30,M36,M42,M48,M56,M64
Mat No: 5082605000, Article No: 50826050
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
General purpose thread milling cutter.
E form tools are multi-point thread mills with a fixed pitch.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | WHTTHREDR-4.200E0.50-10.0CTZ11.8-F21_5082605000 (0650688) | |
| EDP # | 0650688 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.8 oz | 22 g |

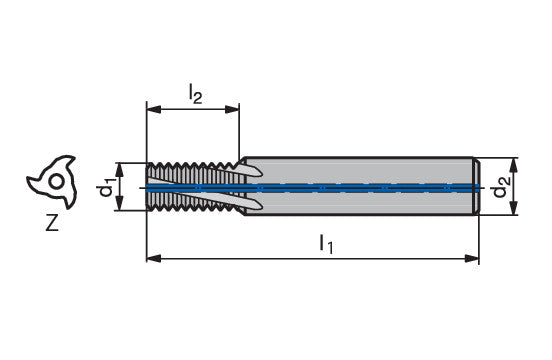

| Cutting diameter DC/d1 | 0.1654 inch | 4.2 mm |
| Thread | M5x0.5 | |
| Thread pitch TP/p | 0.0197 inch | 0.5 mm |
| Depth of cut maximum APMX/l2 | 0.3937 inch | 10 mm |
| Overall length OAL/l1 | 2.1654 inch | 55 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.2362 inch | 6 mm |
| Peripheral effective cutting edge count ZEFP/Z | 3 | |
Application & Properties:
Suitable Materials:
