Description

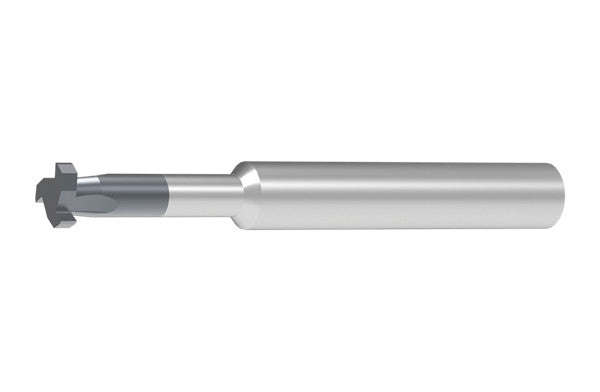

MICROMILL.5,8.HA.6.1,0.0,8.15,2 CWX500 SOLID CARBIDE END MILLING CUTTER
Mat No: 5305010000,Article No: 53050100
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
General purpose thread milling cutter.
S form tools are for slotting and grooving,using the tool flank exclusively to produce geometry.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | WHTDRIFTR-5.800S1.00-15.2CTZ17.4-F22_5305010000 (0650711) | |
| EDP # | 0650711 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.8 oz | 23 g |

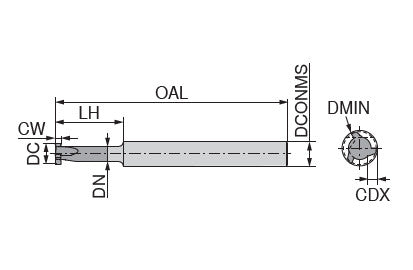

| Cutting diameter DC/d1 | 0.2283 inch | 5.8 mm |
| Cutting width CW/b 0.02 | 0.0394 inch | 1 mm |
| Cutting depth maximum CDX/T max. | 0.0315 inch | 0.8 mm |
| Head length LH/l3 | 0.5984 inch | 15.2 mm |
| Overall length OAL/l1 | 2.2835 inch | 58 mm |
| Neck Diameter DN/d3 | 0.1496 inch | 3.8 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.2362 inch | 6 mm |
| Peripheral effective cutting edge count ZEFP/Z | 3 | |
| Minimum bore diameter DMIN/d0 | 0.2362 inch | 6 mm |
Application & Properties:
Suitable Materials:
