Description

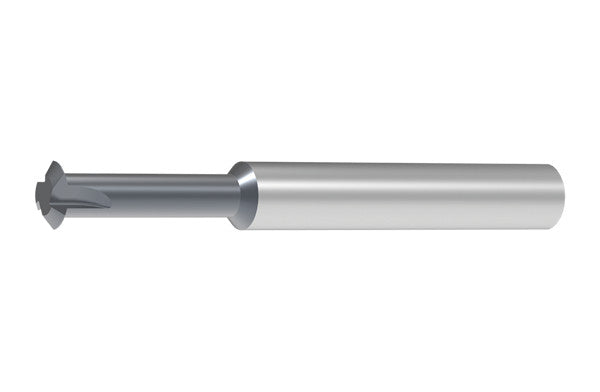

MICROMILL.M0,5-1,5.HA.6.15,2 CWX500 SOLID CARBIDE THREAD MILLING CUTTER
Mat No: 5305301000, Article No: 53053010
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT MICROMILL.M0,5-1,5.HA.6.15,2 CWX500 SOLID CARBIDE THREAD MILLING CUTTER 5305301000 (0650714) | |
| EDP # | 0650714 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.8 oz | 22.7 g |
| Cutting diameter DC/d1 | 0.2283 inch | 5.8 mm |
| Thread pitch range TP/p | 0.5 - 1.5 mm | |
| Insert width W1/s | 0.0787 inch | 2 mm |
| Cutting width CW/b | 0.0024 inch | 0.06 mm |
| Cutting depth maximum CDX/T max. | 0.0358 inch | 0.91 mm |
| Head length LH/l3 | 0.5984 inch | 15.2 mm |
| Overall length OAL/l1 | 2.2835 inch | 58 mm |
| Neck Diameter DN/d3 | 0.1378 inch | 3.5 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.2362 inch | 6 mm |
| Peripheral effective cutting edge count ZEFP/Z | 3 | |
| Minimum bore diameter DMIN/d0 | 0.2362 inch | 6 mm |
Application & Properties:
Suitable Materials:
