Description

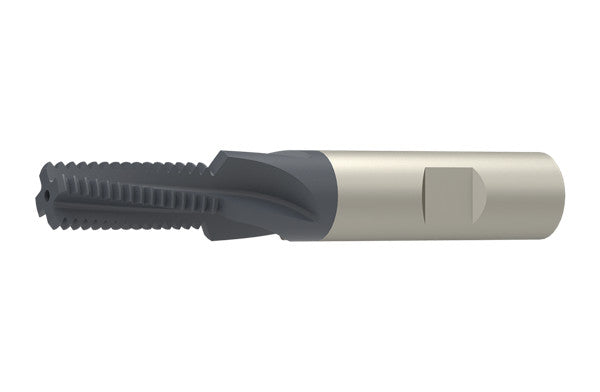

SFSE.NPT3/8-18.HB.16.15,0.IK TI500 SOLID CARBIDE THREAD MILL WITH CHAMFER Profile-corrected Hard machining to Ø DC = 4 mm possible Chamfer section at end of shank
Mat No: 5480903800, Article No: 54809038
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT SFSE.NPT3/8-18.HB.16.15,0.IK TI500 SOLID CARBIDE THREAD MILL WITH CHAMFER 5480903800 (0650721) | |
| EDP # | 0650721 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 7.7 oz | 218.0 g |

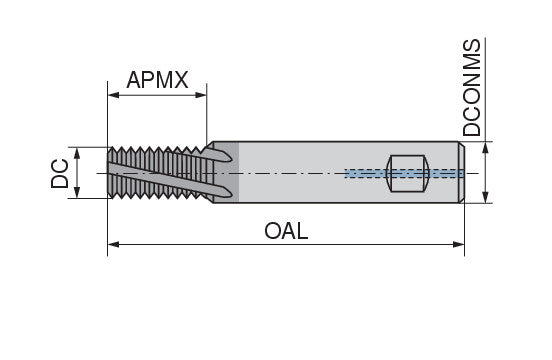

| Cutting diameter DC/d1 | 0.5039 inch | 12.8 mm |
| Thread | NPT 3/8-18 | |
| Thread pitch TP/p | 0.0556 inch | 1.411 mm |
| Threads per inch TPI/p | 18 | |
| Depth of cut maximum APMX/l2 | 0.5906 inch | 15 mm |
| Overall length OAL/l1 | 3.937 inch | 100 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.6299 inch | 16 mm |
| Peripheral effective cutting edge count ZEFP/Z | 4 | |
Application & Properties:
Suitable Materials:
