WHTTHREDR-18.50E1.81-19.0CTZ20.5-U43_5480903400 (0650724)


Price:
Sale price$370.13
Stock:
Re-stocking soon

Description

SFSE.NPT3/4-14.HB.20.19,0.IK TI500 SOLID CARBIDE THREAD MILL WITH CHAMFER Profile-corrected Hard machining to Ø DC = 4 mm possible Chamfer section at end of shank

Mat No: 5082401400, Article No: 50824014

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

'E' form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-18.50E1.81-19.0CTZ20.5-U43_5480903400 (0650724)
EDP # 0650724
Workpiece Material(s) All Materials (White)
Weight 16.4 oz 465 g

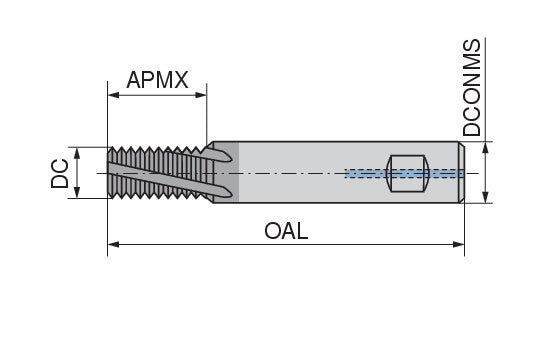

Cutting diameter DC/d1 0.7283 inch 18.5 mm
Thread NPT 3/4-14
Thread pitch TP/p 0.0714 inch 1.814 mm
Threads per inch TPI/p 14
Depth of cut maximum APMX/l2 0.748 inch 19 mm
Overall length OAL/l1 4.3307 inch 110 mm
Mounting spigot diameter DCONMS/d2 h6 0.7874 inch 20 mm
Peripheral effective cutting edge count ZEFP/Z 5

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
