WHTTHREDR-17.95E1.81-47.0CTZ47.0-S43_5480505800 (0650725)


Price:
Sale price$435.41
Stock:
Not in stock - Available to order

Description

SFSE.G5/8-14.HB.18.47,0.IR/IL.IK TI500 SOLID CARBIDE THREAD MILL WITH CHAMFER Profile-corrected Hard machining to DC = 4 mm possible Chamfer section at end of shank

Mat No: 5480505800,Article No: 54805058

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

E form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-17.95E1.81-47.0CTZ47.0-S43_5480505800 (0650725)
EDP # 0650725
Workpiece Material(s) All Materials (White)
Weight 11.0 oz 312 g

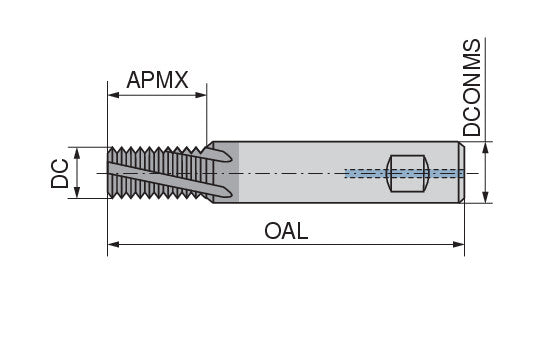

Cutting diameter DC/d1 0.7067 inch 17.95 mm
Thread G 5/8-14
Thread pitch TP/p 0.0714 inch 1.814 mm
Threads per inch TPI/p 14
Depth of cut maximum APMX/l2 1.8504 inch 47 mm
Overall length OAL/l1 4.3307 inch 110 mm
Mounting spigot diameter DCONMS/d2 h6 0.7087 inch 18 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
