WHTTHREDR-9.900E1.95-27.0CTZ31.1-O35_5481101200 (0650727)


Price:
Sale price$245.14
Stock:
Re-stocking soon

Description

SFSE.UNC1/2-13.HB.14.27,0.IK TI500 SOLID CARBIDE THREAD MILL WITH CHAMFER Profile-corrected Hard machining to Ø DC = 4 mm possible Chamfer section at end of shank

Mat No: 5082401400, Article No: 50824014

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

'E' form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-9.900E1.95-27.0CTZ31.1-O35_5481101200 (0650727)
EDP # 0650727
Workpiece Material(s) All Materials (White)
Weight 5.3 oz 150 g

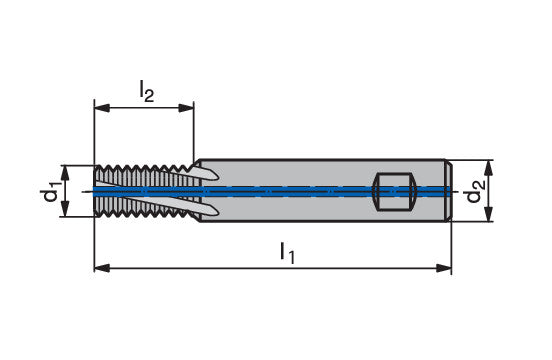

Cutting diameter DC/d1 0.3898 inch 9.9 mm
Thread UNC 1/2-13
Thread pitch TP/p 0.0769 inch 1.954 mm
Threads per inch TPI/p 13
Depth of cut maximum APMX/l2 1.063 inch 27 mm
Overall length OAL/l1 3.5433 inch 90 mm
Mounting spigot diameter DCONMS/d2 h6 0.5512 inch 14 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
