WHTTHREDR-7.950E1.27-22.0CTZ28.1-O35_5481371600 (0650729)


Price:
Sale price$245.14
Stock:
Re-stocking soon

Description

SFSE.UNF7/16-20.HB.14.22,0.IK TI500 SOLID CARBIDE THREAD MILL WITH CHAMFER Profile-corrected Hard machining to Ø DC = 4 mm possible Chamfer section at end of shank

Mat No: 5082401400, Article No: 50824014

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

'E' form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties

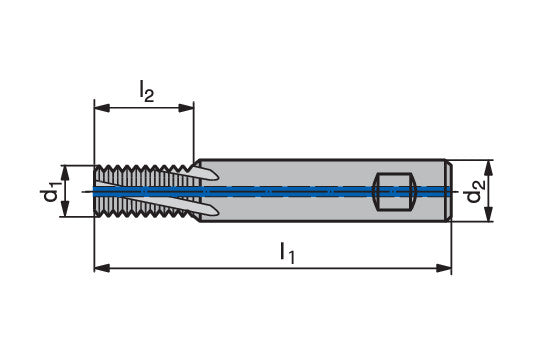

Name WHTTHREDR-7.950E1.27-22.0CTZ28.1-O35_5481371600 (0650729)
EDP # 0650729
Workpiece Material(s) All Materials (White)
Weight 5.4 oz 151 g
Cutting diameter DC/d1 0.313 inch 7.95 mm
Thread UNF 7/16-20
Thread pitch TP/p 0.05 inch 1.27 mm
Threads per inch TPI/p 20
Depth of cut maximum APMX/l2 0.8661 inch 22 mm
Overall length OAL/l1 3.5433 inch 90 mm
Mounting spigot diameter DCONMS/d2 h6 0.5512 inch 14 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
