WHTTHREDR-12.70E2.31-34.0CTZ35.3-O35_5481105800 (0650734)


Price:
Sale price$250.88
Stock:
Re-stocking soon

Description

SFSE.UNC5/8-11.HB.14.34,0.IK TI500 SOLID CARBIDE THREAD MILL WITH CHAMFER Profile-corrected Hard machining to Ø DC = 4 mm possible Chamfer section at end of shank

Mat No: 5082401400, Article No: 50824014

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

'E' form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-12.70E2.31-34.0CTZ35.3-O35_5481105800 (0650734)
EDP # 0650734
Workpiece Material(s) All Materials (White)
Weight 5.3 oz 150 g

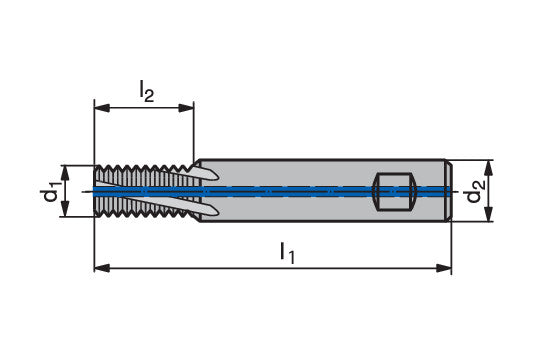

Cutting diameter DC/d1 0.5 inch 12.7 mm
Thread UNC 5/8-11
Thread pitch TP/p 0.0909 inch 2.309 mm
Threads per inch TPI/p 11
Depth of cut maximum APMX/l2 1.3386 inch 34 mm
Overall length OAL/l1 3.5433 inch 90 mm
Mounting spigot diameter DCONMS/d2 h6 0.5512 inch 14 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
