WHTTHREDR-11.60E1.00-31.0CTZ35.4-R39_5480314000 (0650739)


Price:
Sale price$326.67
Stock:
Not in stock - Available to order

Description

SFSE.M14X1,0.HB.16.31,0.IR/IL.IK TI500 SOLID CARBIDE THREAD MILL WITH CHAMFER Profile-corrected Hard machining to DC = 4 mm possible Chamfer section at end of shank

Mat No: 5480314000,Article No: 54803140

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

E form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-11.60E1.00-31.0CTZ35.4-R39_5480314000 (0650739)
EDP # 0650739
Workpiece Material(s) All Materials (White)
Weight 7.8 oz 222 g

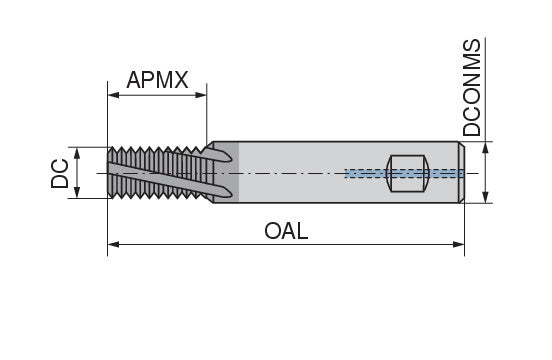

Cutting diameter DC/d1 0.4567 inch 11.6 mm
Thread M14x1
Thread pitch TP/p 0.0394 inch 1 mm
Depth of cut maximum APMX/l2 1.2205 inch 31 mm
Overall length OAL/l1 3.937 inch 100 mm
Mounting spigot diameter DCONMS/d2 h6 0.6299 inch 16 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
