WHTTHREDR-8.000E1.00-22.0CTZ26.0-M31_5480310000 (0650748)

Sale price$213.74
Re-stocking soon


SFSE.M10X1,0.HB.12.22,0.IR/IL.IK TI500 SOLID CARBIDE THREAD MILL WITH CHAMFER Profile-corrected Hard machining to Ø DC = 4 mm possible Chamfer section at end of shank

Mat No: 5082401400, Article No: 50824014

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

'E' form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Name WHTTHREDR-8.000E1.00-22.0CTZ26.0-M31_5480310000 (0650748)
EDP # 0650748
Workpiece Material(s) All Materials (White)
Weight 3.4 oz 97 g

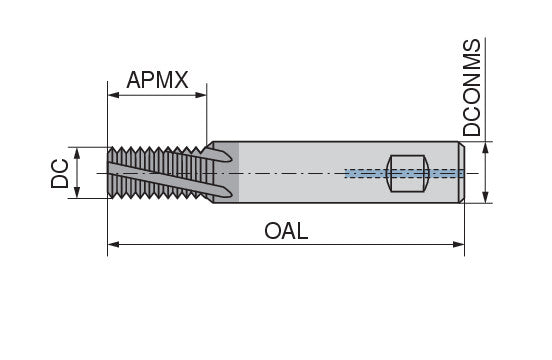

Cutting diameter DC/d1 0.315 inch 8 mm
Thread M10x1
Thread pitch TP/p 0.0394 inch 1 mm
Depth of cut maximum APMX/l2 0.8661 inch 22 mm
Overall length OAL/l1 3.1496 inch 80 mm
Mounting spigot diameter DCONMS/d2 h6 0.4724 inch 12 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
