Description
SFSE.M16X1,5.HB.12.35,0.IR/IL.IK TI500 SOLID CARBIDE THREAD MILL WITH CHAMFER Profile-corrected Hard machining to Ø DC = 4 mm possible Chamfer section at end of shank
Mat No: 5480316000, Article No: 54803160
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT SFSE.M16X1,5.HB.12.35,0.IR/IL.IK TI500 SOLID CARBIDE THREAD MILL WITH CHAMFER 5480316000 (0650750) | |
| EDP # | 0650750 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.3 oz | 9.0 g |

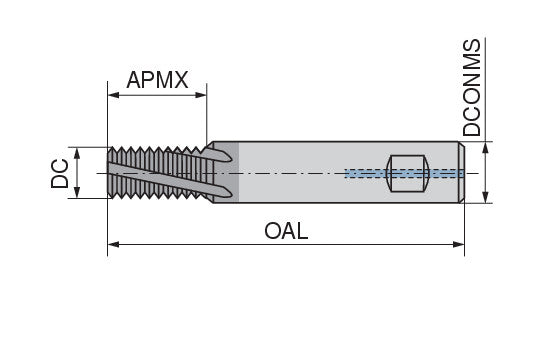

| Cutting diameter DC/d1 | 0.4724 inch | 12 mm |
| Thread | M16x1.5 | |
| Thread pitch TP/p | 0.0591 inch | 1.5 mm |
| Depth of cut maximum APMX/l2 | 1.378 inch | 35 mm |
| Overall length OAL/l1 | 3.5433 inch | 90 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.4724 inch | 12 mm |
| Peripheral effective cutting edge count ZEFP/Z | 4 | |
Application & Properties:
Suitable Materials:
