WHTTHREDR-7.600E1.06-21.0CTZ25.4-M31_5481303800 (0650752)


Price:
Sale price$213.74
Stock:
Re-stocking soon

Description

SFSE.UNF3/8-24.HB.12.21,0.IK TI500 SOLID CARBIDE THREAD MILL WITH CHAMFER Profile-corrected Hard machining to Ø DC = 4 mm possible Chamfer section at end of shank

Mat No: 5082401400, Article No: 50824014

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

'E' form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-7.600E1.06-21.0CTZ25.4-M31_5481303800 (0650752)
EDP # 0650752
Workpiece Material(s) All Materials (White)
Weight 3.5 oz 98 g

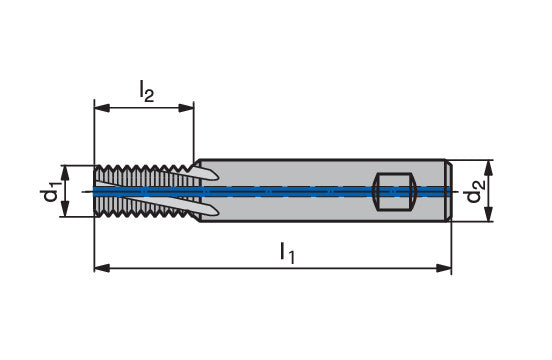

Cutting diameter DC/d1 0.2992 inch 7.6 mm
Thread UNF 3/8-24
Thread pitch TP/p 0.0417 inch 1.058 mm
Threads per inch TPI/p 24
Depth of cut maximum APMX/l2 0.8268 inch 21 mm
Overall length OAL/l1 3.1496 inch 80 mm
Mounting spigot diameter DCONMS/d2 h6 0.4724 inch 12 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
