WHTTHREDR-13.95E2.50-39.0CTZ45.0-U43_5480118000 (0650754)

Sale price$362.27
Re-stocking soon


SFSE.M18.HB.20.39,0.IR/IL.IK TI500 SOLID CARBIDE THREAD MILL WITH CHAMFER Profile-corrected Hard machining to Ø DC = 4 mm possible Chamfer section at end of shank

Mat No: 5082401400, Article No: 50824014

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

'E' form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Name WHTTHREDR-13.95E2.50-39.0CTZ45.0-U43_5480118000 (0650754)
EDP # 0650754
Workpiece Material(s) All Materials (White)
Weight 12.0 oz 339 g

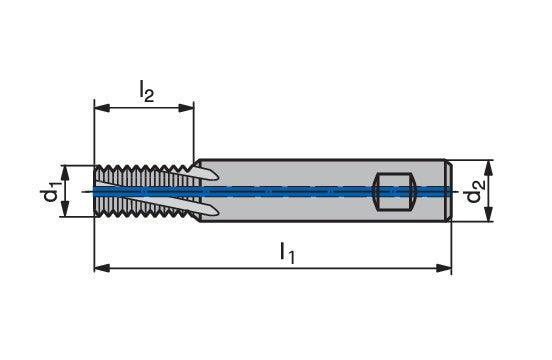

Cutting diameter DC/d1 0.5492 inch 13.95 mm
Thread M18
Thread pitch TP/p 0.0984 inch 2.5 mm
Depth of cut maximum APMX/l2 1.5354 inch 39 mm
Overall length OAL/l1 4.3307 inch 110 mm
Mounting spigot diameter DCONMS/d2 h6 0.7874 inch 20 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
