CERATIZIT SFSE.M5.HB.8.11,0.IR/IL TI500 SOLID CARBIDE THREAD MILL WITH CHAMFER 5480105000 (0650763)


Price:
Sale price$154.43
Stock:
Not in stock - Available to order

Description

SFSE.M5.HB.8.11,0.IR/IL TI500 SOLID CARBIDE THREAD MILL WITH CHAMFER Profile-corrected Hard machining to Ø DC = 4 mm possible Chamfer section at end of shank

Mat No: 5480105000, Article No: 54801050

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT SFSE.M5.HB.8.11,0.IR/IL TI500 SOLID CARBIDE THREAD MILL WITH CHAMFER 5480105000 (0650763)
EDP # 0650763
Workpiece Material(s) All Materials (White)
Weight 1.4 oz 40.0 g

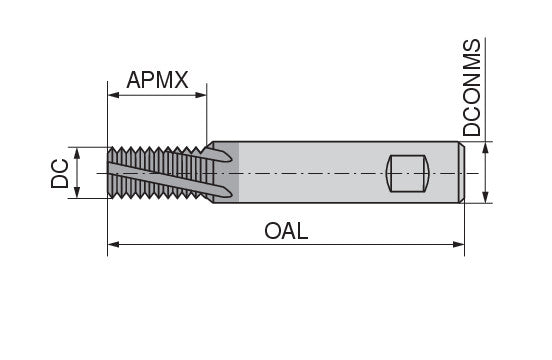

Cutting diameter DC/d1 0.1575 inch 4 mm
Thread M5
Thread pitch TP/p 0.0315 inch 0.8 mm
Depth of cut maximum APMX/l2 0.4331 inch 11 mm
Overall length OAL/l1 2.4409 inch 62 mm
Mounting spigot diameter DCONMS/d2 h6 0.315 inch 8 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
,
