Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 54801060
Ceratizit Material Number: 5480106000
Product discontinued! Unavailable if out of stock.
The replacement OEM part number is 5481506000, use this number in the product search or:
Please contact us for details on the replacement for this item.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

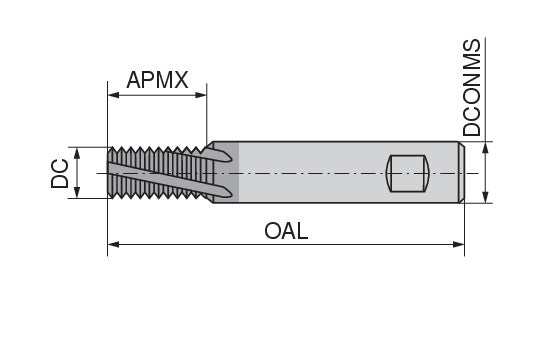

| Name | Ceratizit SFSE.M6.HB.8.13.0.IR/IL TI500 MonoThread - Thread Milling Cutter With Chamfer Facet 54801060 | |
| EDP # | 0650764 | |
| Weight (1 pc.) | 1.0 oz | 30.0 g |
| Thread | M6 | |
| Thread pitch / TP | 0.0394' | 1.000 mm |
| Cutting diameter / DC | 0.1890' | 4.800 mm |
| Depth of cut maximum / APMX | 0.5118' | 13.000 mm |
| Shank length / LS | 1.4173' | 36.000 mm |
| Overall length / OAL | 2.4409' | 62.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.3150' | 8.000 mm |
| Countersunk diameter, max / DCSKX | 0.2480' | 6.300 mm |
| Functional length / LF | 0.5976' | 15.180 mm |
| Peripheral effective cutting edge count / ZEFP | 3 | |
| Coating name / Grade (Ceratizit) / COATN | Ti500 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
