WHTTHREDR-7.600E0.91-20.0CTZ24.4-M31_5081801800 (0650765)


Price:
Sale price$221.60
Stock:
Re-stocking soon

Description

SFSE.G1/8-28.HA.12.20,0.IR/IL.IK TIALN SOLID CARBIDE THREAD MILL WITH CHAMFER

Mat No: 5082401400, Article No: 50824014

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

'E' form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-7.600E0.91-20.0CTZ24.4-M31_5081801800 (0650765)
EDP # 0650765
Workpiece Material(s) All Materials (White)
Weight 3.8 oz 107 g

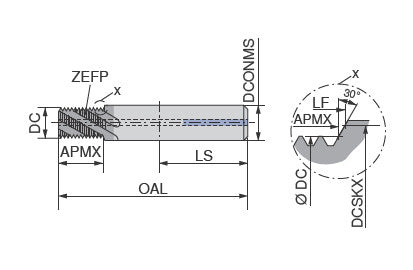

Cutting diameter DC/d1 0.2992 inch 7.6 mm
Thread G 1/8-28
Thread pitch TP/p 0.0357 inch 0.907 mm
Threads per inch TPI/p 28
Depth of cut maximum APMX/l2 0.7874 inch 20 mm
Shank length LS/l3 min. 1.7717 inch 45 mm
Overall length OAL/l1 3.1496 inch 80 mm
Mounting spigot diameter DCONMS/d2 h6 0.4724 inch 12 mm
Countersunk diameter. max DCSKX/d5 0.3937 inch 10 mm
Functional length LF/l5 0.8256 inch 20.97 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
