WHTTHREDR-7.600E1.06-21.0CTZ25.4-M31_5082403800 (0650767)


Price:
Sale price$252.49
Stock:
Not in stock - Available to order

Description

SFSE.UNF3/4-24.HA.12.21,0.IK TIALN SOLID CARBIDE THREAD MILL WITH CHAMFER

Mat No: 5082403800,Article No: 50824038

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

E form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-7.600E1.06-21.0CTZ25.4-M31_5082403800 (0650767)
EDP # 0650767
Workpiece Material(s) All Materials (White)
Weight 3.8 oz 106 g

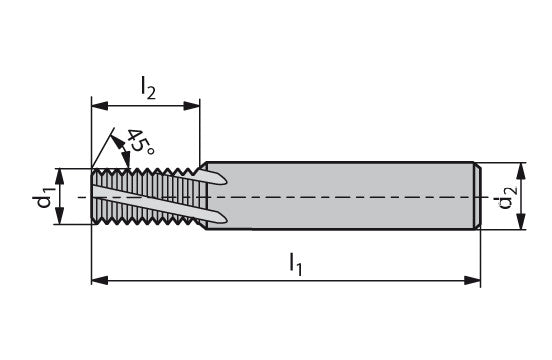

Cutting diameter DC/d1 0.2992 inch 7.6 mm
Thread UNF 3/8-24
Thread pitch TP/p 0.0417 inch 1.058 mm
Threads per inch TPI/p 24
Depth of cut maximum APMX/l2 0.8268 inch 21 mm
Shank length LS/l3 min. 1.7717 inch 45 mm
Overall length OAL/l1 3.1496 inch 80 mm
Mounting spigot diameter DCONMS/d2 h6 0.4724 inch 12 mm
Countersunk diameter. max DCSKX/d5 0.387 inch 9.83 mm
Functional length LF/l5 0.878 inch 22.3 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
