WHTTHREDR-8.000E1.00-22.0CTZ24.0-K29_5081610200 (0650771)


Price:
Sale price$183.10
Stock:
Not in stock - Available to order

Description

SFSE.M10X1.HA.10.22,0.IR/IL.IK TIALN SOLID CARBIDE THREAD MILL WITH CHAMFER

Mat No: 5081610200,Article No: 50816102

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

E form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-8.000E1.00-22.0CTZ24.0-K29_5081610200 (0650771)
EDP # 0650771
Workpiece Material(s) All Materials (White)
Weight 2.6 oz 73 g

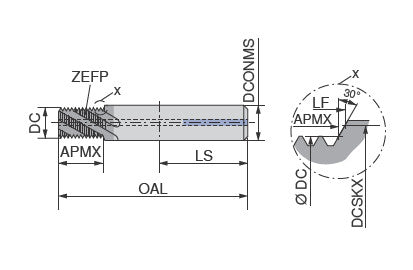

Cutting diameter DC/d1 0.315 inch 8 mm
Thread M10x1
Thread pitch TP/p 0.0394 inch 1 mm
Depth of cut maximum APMX/l2 0.8661 inch 22 mm
Shank length LS/l3 min. 1.5748 inch 40 mm
Overall length OAL/l1 2.9134 inch 74 mm
Mounting spigot diameter DCONMS/d2 h6 0.3937 inch 10 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
