WHTTHREDR-12.50E2.00-35.0CTZ38.5-R39_5081116000 (0650775)


Price:
Sale price$334.88
Stock:
Not in stock - Available to order

Description

SFSE.M16.HA.16.35,0.IR/IL.IK TIALN SOLID CARBIDE THREAD MILL WITH CHAMFER

Mat No: 5081116000,Article No: 50811160

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

E form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties

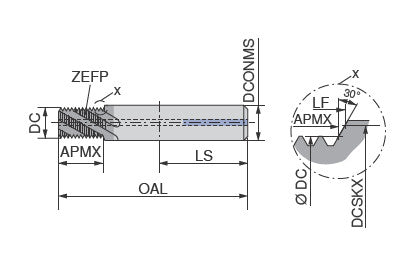

Name WHTTHREDR-12.50E2.00-35.0CTZ38.5-R39_5081116000 (0650775)
EDP # 0650775
Workpiece Material(s) All Materials (White)
Weight 7.5 oz 212 g
Cutting diameter DC/d1 0.4921 inch 12.5 mm
Thread M16
Thread pitch TP/p 0.0787 inch 2 mm
Depth of cut maximum APMX/l2 1.378 inch 35 mm
Shank length LS/l3 min. 1.8898 inch 48 mm
Overall length OAL/l1 3.937 inch 100 mm
Mounting spigot diameter DCONMS/d2 h6 0.6299 inch 16 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
